Control4: Identifying Available Variables and Current Values

Control4: Identifying Available Variables and Current Values

All Available Driver Variables for devices can be located in the Variables Agent.

Alert
Please note: Some drivers such as Web To Variables will not display all available variables until configuration of the driver is complete

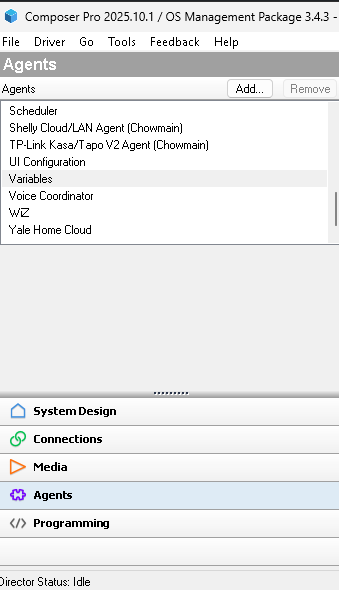

1. In Composer Pro, switch to the Agents Tab. Select the Variables Agent. If Variables Agent is not shown, you will need to add it.

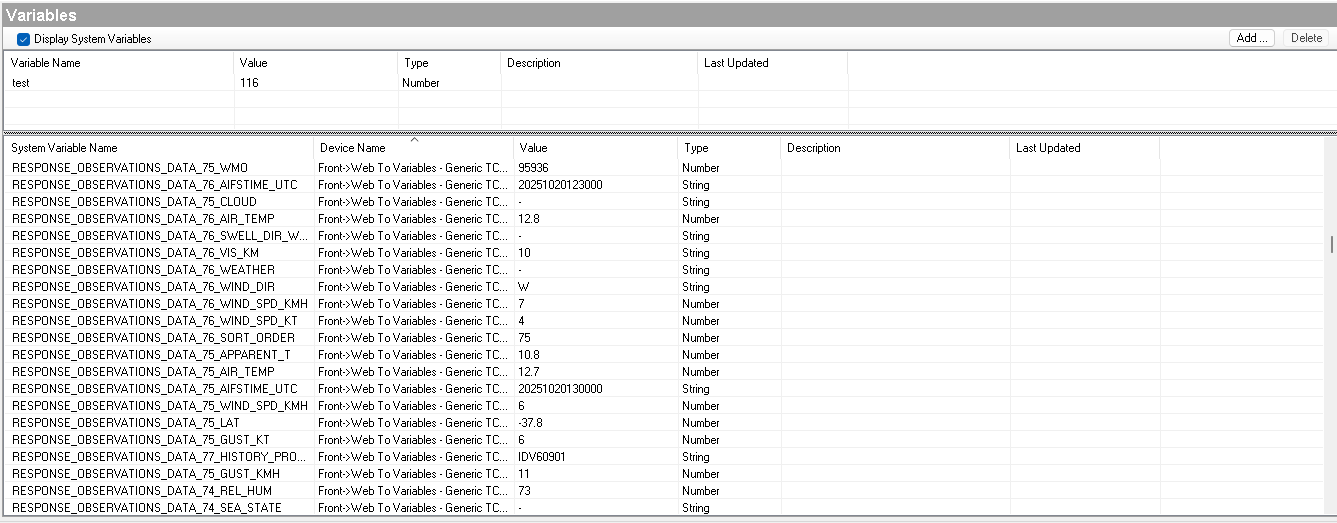

2. Enable Display System Variable


3. All Device Variables will be listed below
