CONTROL4 BOND: How to send generic bond bridge commands
In Composer, navigate to Programming > Actions > Device Actions, and select the Bond bridge driver.

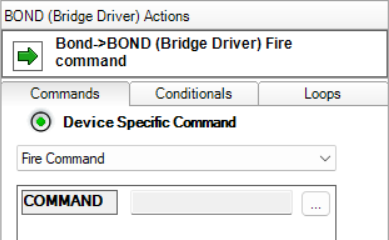

Use the bridge driver's Device Specific Command > Fire Command > COMMAND to send a command available on the Bond app that isn't available in Control4 or via our drivers (ex. tilt in a blind device has no proxy command that we can associate to it).

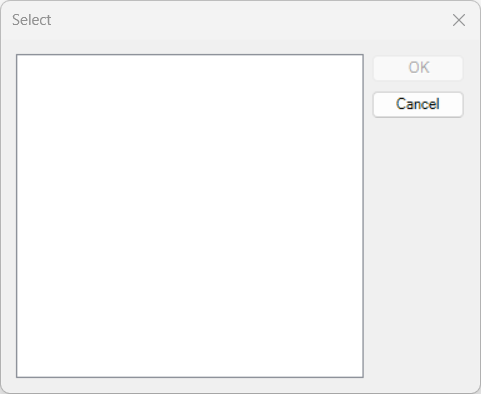

When you click the ... button, the list will appear empty for as long as it takes for the driver to request and receive all the commands (represented as buttons learned for each device in the Bond app) available to the bridge.
This can take up to 5 minutes if the Bond has a large amount of devices learned into it.

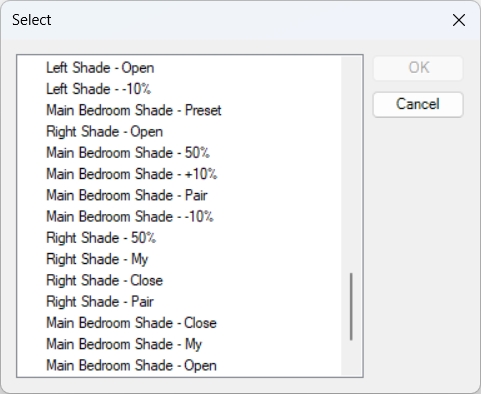

The list is not alphabetically ordered so, search the complete list for your preferred command
You can now assign this command to an Experience Button or other programming.
Caution
Control4's proxies are not updated when these commands are fired.
It is your responsibility to make sure the client is aware that the Control4 proxy UI will become out of sync with the physical state of the device.
Before any troubleshooting by Chowmain you must remove all commands added via this method
